Rehden SY 24/25 (3) – 2.5 TWh

Tel.: +49 561 99858-7174
Tel.: +49 561 99858-7178
E-mail: sales@sefe-storage.de

Bundle structure

	Volume firm	Volume interr.	Injection firm	Injection interr.	Withdrawal firm	Withdrawal interr.
01/04/24–01/04/25	100,171,093 kWh	0	32,943 kWh/h	0	50,681 kWh/h	0
01/04/25–01/06/25	0	10,017,109 kWh	0	0	0	8,900 kWh/h

Renomination lead time delivery point	2 h
Max technical lead times (IR/WR)	2/6 h
Min flow	see specification
Temperature-dependent injection rate and withdrawal rate	see specification

	Name	TSO	Market Area	Point-ID entry/exit	Offered Transport Capacity
Delivery point	USP Rehden	GASCADE GmbH	THE	Sp. Rehden	bFZKtemp., DZK, UBK

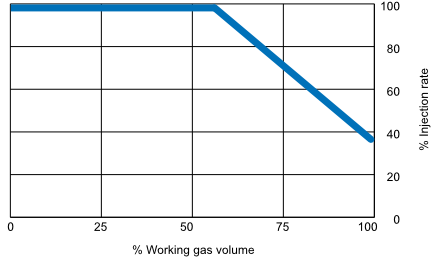

IC [%] = WGV [%] x (–1.436) + 180.104

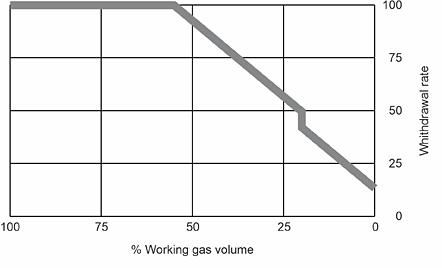

Working gas level between 55.0348189415042 % and 20 %:
WC [%] = WGV [%] x 1.436 + 20.97

Working gas level lower than or equal to 20 %:
WC [%] = WGV [%] x 1.436 + 13.47

No curves apply to interruptible capacity.

Allocation of capacity a few minutes after closing.

The respective current legal filling level should be taken into consideration.

*min. time to fully inject/withdraw using firm rates without consideration of storage curves

** min. time to fully inject/withdraw using firm and interruptible rates without consideration of storage curves
